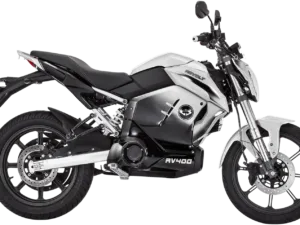

Revolt RV400 E Bike
Rs. 142950
(Ex Showroom Price)
Revolt RV400 E Bike Main Features
Motor : 3 KW
Controller :3 KW
Battery Capacity : 3.24 KWH
Vehicle weight : 108 KG
Range : 150 KM
Max. Speed : 85 KM/H
Brand : Revolt Motors
Under Seat Storage : N/A
Revolt RV400 E Bike All Details
Motor :3 KW
Motor Type : Mid Drive Motor
Motor IP Rating : IP67
Controller : 3 KW
Max. Power : 4.1 KW
Max. Torque : 180 Nm (At Wheel)
Acceleration : 0-40 Km/h In 5.2 Sec
Top Speed : 85 KM/H
Range : 150 KM
Powered By : Battery
Transmission : Automatic
Starting : Electric
Emissions : No
Riding Modes : Normal, Eco and Sport
Water Wading Limit : 21 CM
Transmission: Automatic
Number Of Batteries : 1
Battery Type : IP67
Battery Power : 3.24 KWH
Battery IP Rating : IP67
Battery Warranty : 3 Years
Battery Volts : 72 V
Battery Ampere : 45 AH
Charger Type : Portable
Charger Volt : 84 V
Charger Ampere : 15 A
ChargingPower : 935 W
Charging Time : 0-80% In 3 H
Charging At Charging Station : Yes
Charging At Home : Yes
Front Light : LED Projector Headlamp
Back Light : LED
Wiring : 12 Volt, DC
Length : 215.6 CM
Height : 111 CM
Width : 81 CM
Seat Heigth : 81.5 CM
Ground Clearance : 21.5 CM
Weight : 108 KG
Front Wheel : 17 Inches, Alloy
Rear Wheel : 17 Inches, Alloy
Front Tyre : 90/80-17, Tubeless
Rear Tyre : 110/80-17, Tubeless
Front Tyre Pressure : 25 PSI
Rear Tyre Pressure : 30 PSI
Braking : CBS, Disc
Front Brake : 280mm Disc with 2 Piston
Rear Brake : 280mm Disc with 1 Piston
Clothes Guard : Yes
Front Suspension : Upside Down Forks
Rear Suspension : Adjustable Monoshock
Chassis Type : Single Cradle Frame
Body Type : Sports Bike
Seat : Single
Instrument Console : Digital
Display : LCD Touch Screen Display
Connectivity : Bluetooth, Mobile Application
Digital : Speedometer, Odometer, Tripmeter
Location Tracking : Yes
Call SMS Alert : Yes
USB Charging Port : Yes
Average Battery Consumption : Yes
Mileage Indicator : No
Distance To Empty : NO
Low Battery Indicator : Yes
Stand Alarm : YES
Service Reminder : YES
Hazard Warning Indicator : YES
Clock : YES
Remote Lock-Unlock : YES
Standard Warranty In Years : 3.25 Years
Standard warranty In KM : 40000 KM
1ST Service : 1000 KM / 30 Days
2ND Service : 10000 KM / 210 Days
3Rd Service : 20000 KM / 420 Days
4TH Service : 30000 KM / 630 Days
5TH Service : 40000 KM / 840 Days
Revolt RV400 E Bike Detailed Information
Revolt RV400 E Bike Motor & Controller
Revolt RV400 e bike is the revolutionary bike of Revolt Motors. The motor and controller are the main component of an electric vehicle. It is important to talk about them. I think motor is the heart and controller is the brain of the bike. I am explaining the main features here so that you can take decision to buy it:-1. Revolt RV400 E Bike Motor
Revolt RV400 e bike uses a mid drive motor of 3 kw which produces a peak power of 4.1 kw and produces a torque up to 180nm (at wheel). and it performs like 110 cc petrol engine.
2. Revolt RV400 E Bike Controller
Revolt RV 400 controller controls both motor and battery. Thermal management, reverse mode,artificial sound etc. are main works.3.Revolt RV 400 Top Speed
Revolt motor provides a maximum speed of 85 km/h in sport mode.
4. Revolt Electric Bike Instant Torque
As Revolt RV 400 is driven by electric motor, maximum torque is provided quickly. It provides quick throttle response with smooth and vibration free acceleration.
5. Transmission
Revolt RV 400 uses low maintenance belt instead of a noisy chain. No tension of cleaning and lubrication.6. Regenerative Braking
While braking or deceleration, motor starts to feed back into batter for saving the power. It saves power and extends range.7. Silent
The motor is almost silent during the whole work. The ride is going to be smooth, noise free and with comfort.
8. Zero Emission
Revolt RV400 produces no emission. It is environment friendly bike for daily commuting.9. Riding Modes

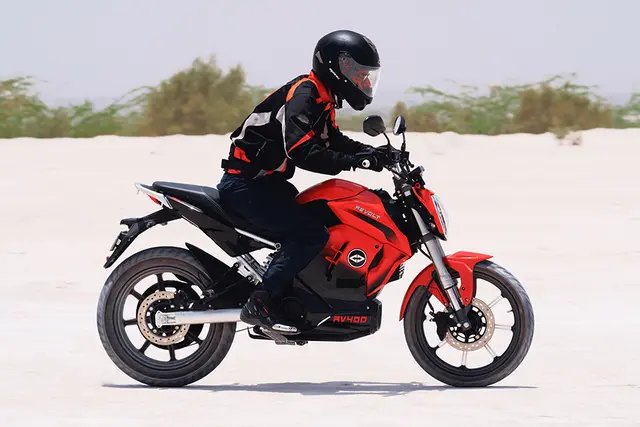

It has 3 riding modes, you can utilize as your need.
- Eco Mode :- This is power saving mode. In this mode, top speed is 45 km/h. and bike can go 150 km in one charging.
- Normal Mode :- This is balanced mode for city commuting. In this mode, top speed is up to 65 km/h and maximum range is 100 km.
- Sport Mode :- Revolt RV400 get it’s top speed up to 85 km/h and the range of 80 km.

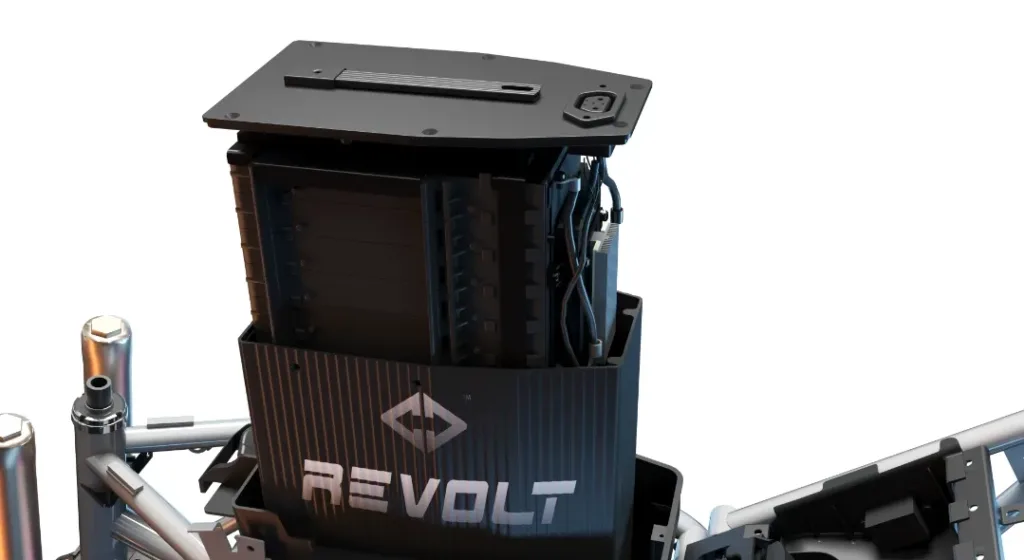

10. Thermal Management of Revolt RV 400
- Controller works with BMS (Battery Management System).
- Controller measures the temperature.
- Controller will temporarily minimize the power, when motor-controller heat in load.
- It protects the hardware.
11. Reverse Mode
It has also reverse mode for rider’s comfort.12. Artificial Sound
Revolt has 4 artificial exhaust sound. It produces sound by a speaker near footpeg. these sounds are controled by MyRevolt App. You can select no sound or one of the following- Revolt, Rebel, Roar, Rage.
13. App Integration And Update
It uses MyRevolt App for monitoring, diagnostics, riding statistics and remote. This app updates automatically, no need to fo for an update to manufacture.14. Cons
I saw only one weak point in Revolt RV 400, That is it’s low top speed- Only 85 km/h. I think, it should be 100 km/h.
15. Conclusion
The motor and controller are equipped with modern technologies. Like- instant torque, regenerative braking, 3 modes, reverse mode, artificial sound and many more. It is money saving commuter bike.Revolt RV400 Price
On road price in Delhi- Revolt RV400 BRZ (Disc/Alloy)- Rs. 140138/-
- Revolt RV400 Prem. (Disc/Alloy)- Rs. 147260/-
Revolt Rv 400 Variant Features
- Revolt RV 400 BRZ :- Physical key, No Bluetooth connectivity, No location tracking, No AI sound.
- Revolt Rv 400 Standard/Premium :- Key less star t/remote / Push button, Bluetooth-App connectivity, GPS, AI Sound.
Chassis Of Revolt RV400 E Bike
- Revolt RV400 Chassis is made as single cradle frame.
- It is lightweight but strong enough for daily commuting.
- Provides better weight distribution.
- It easily handles the Indian road condition.
- Easy handling in heavy traffic and streets.
- Front upside down forks suspensions perform well during braking and turns.
- Adjustable monosocks absorb shocks easily and improves comfort, balance and control during riding.
- 20 cm ground clearance is adequate for Indian roads conditions.
- 280 mm front and rear disc brakes with CBS are additional benefits in safety.
Revolt Rv400 E Bike Body & Graphics
- Naked design.
- Aggressive sporty look.
- Lightweight structure.
- Comfortable riding position for daily commuting.
- Muscular tank-inspired by petrol bikes for real feel and look.
- Body panels enhance the sporty spirit.
- LED projection headlamp with DRL. The headlamp is inspired by Revolt logo.
- LED tail light is also inspired by Revolt logo.
- Side fairing completely covers battery and motor for a premium and sporty appearance.
- Bold graphics, sharp contrasting and premium finish provides an attractive look.
- Available in multiple attractive colours.
Console Features Of Revolt RV 400
- Fully digital instrument cluster.
- Easy to read LCD display.
- Digital speedometer for accurate speed.
- Digital odometer to measure the distance.
- Digital trip meter to measure specific distance.
- Battery percentage indicator.
- Heat monitoring of battery.
- Riding mode display.
- Push button to start.
- Low battery indicator.
- Bluetooth connectivity via smartphone.
- Turn by turn navigation.
- Key less remote key to lock, unlock and for location tracking.
- Call SMS alerts.
- MyRevolt smartphone application.
- Adjustable foot pegs.
- Theft protection.
- Digital clock.
- Battery consumption and riding data.
- Single comfortable seat for rider and pillion.
Q & A For Revolt RV400 E Bike
What is the mileage of Revolt RV400 E Bike?
Revolt RV400 e bike mileage in sports mode-80 km, normal mode- 100 km, eco mode-150 km.
What is the price of Revolt RV400 E Bike?
Revolt RV400 price in Delhi (on road) is frome Rs. 140138 to Rs. 147260.
What is the top speed of Revolt RV400 E Bike ?
Revolt RV400 top speed depends on riding modes. Eco Mode-45 km/h, normal Mode- 65 km/h, Sports Mode- 80 km/h.
What is the weight of Revolt RV400 E Bike ?
It’s weight is 108 kg.
What is the motor-controller efficiency of Revolt RV400 E Bike ?
It has 3 kw motor & controller. It’s peak power is 4.1 kw
What are the digital features of Revolt RV400 E Bike ?
It has multiple digital features like:- Call-SMS alert, Bluetooth, Display, Mobile application, Remote lock-unlock.
what are the colours and variant of Revolt RV400 E Bike ?

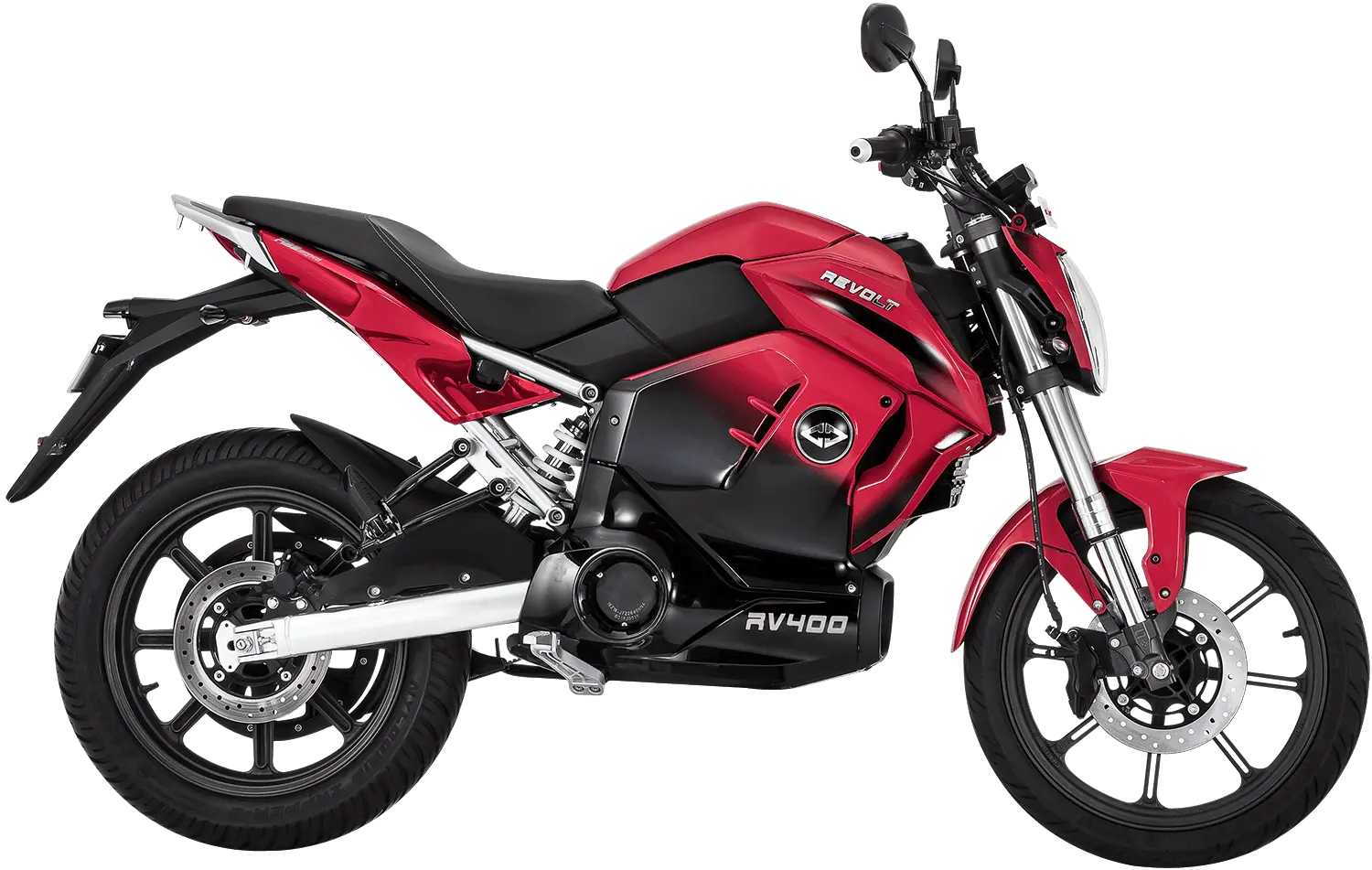

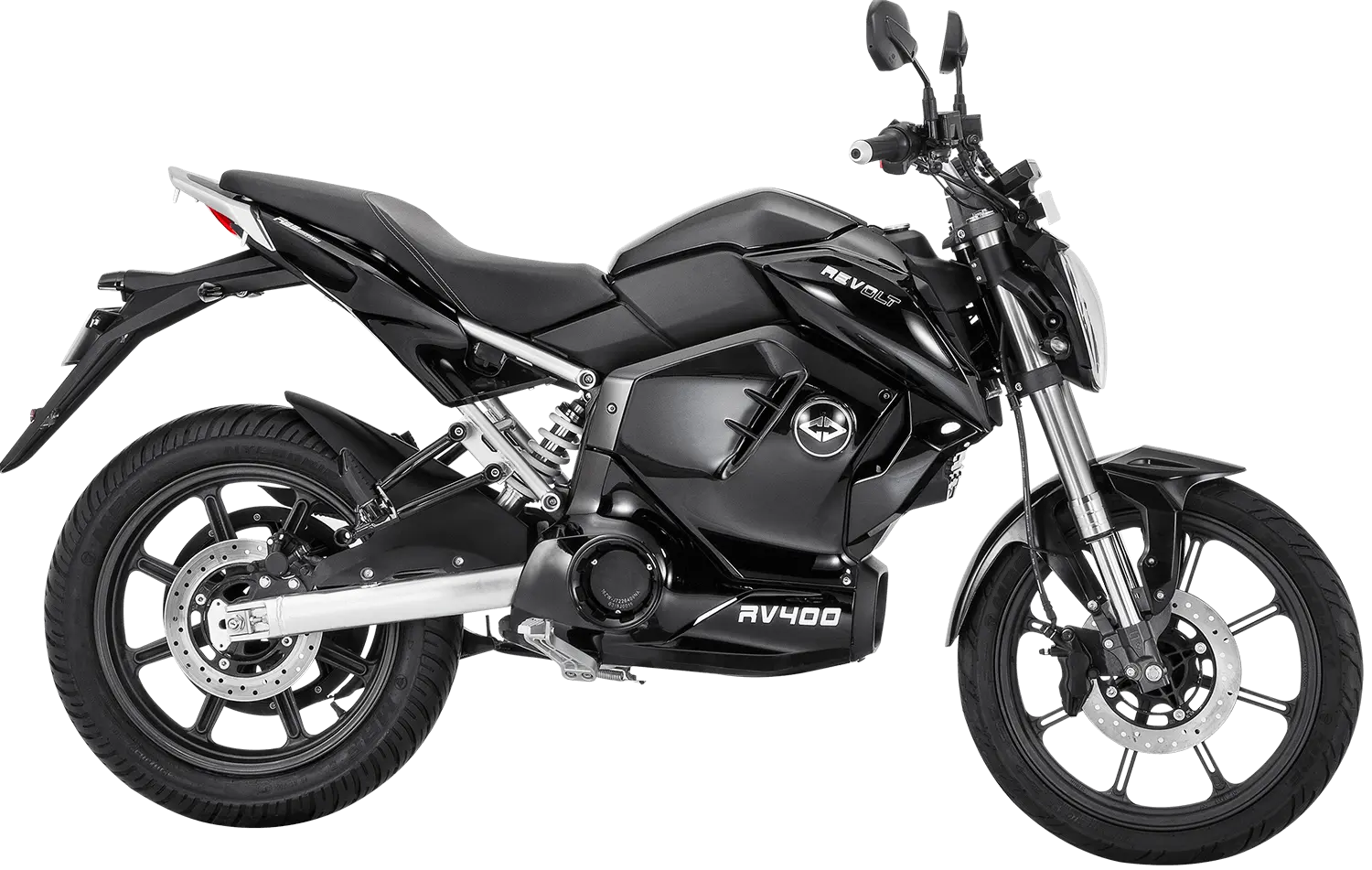

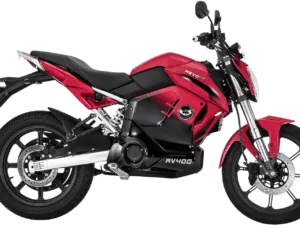

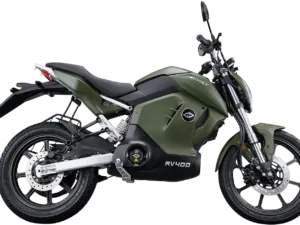

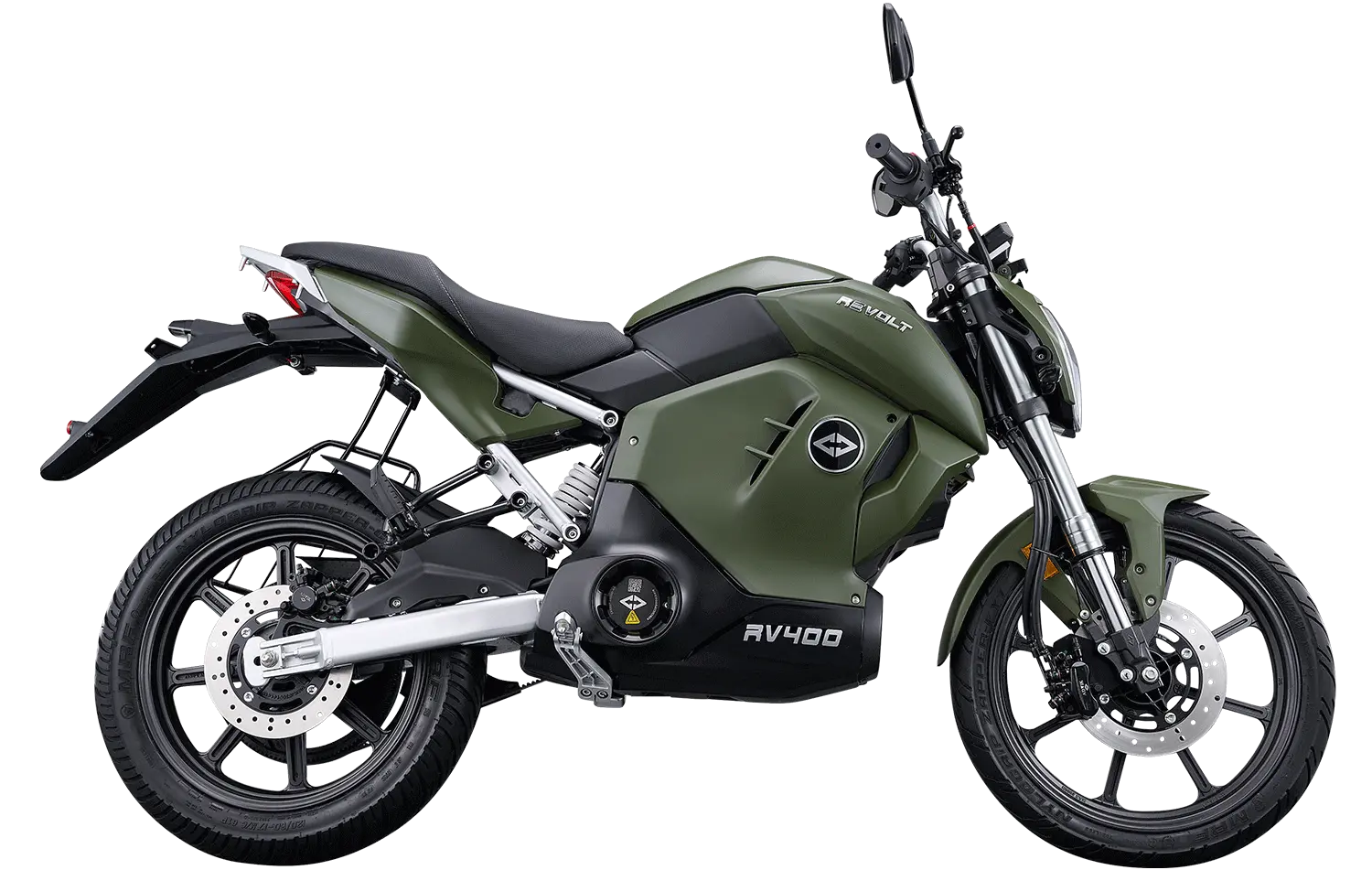

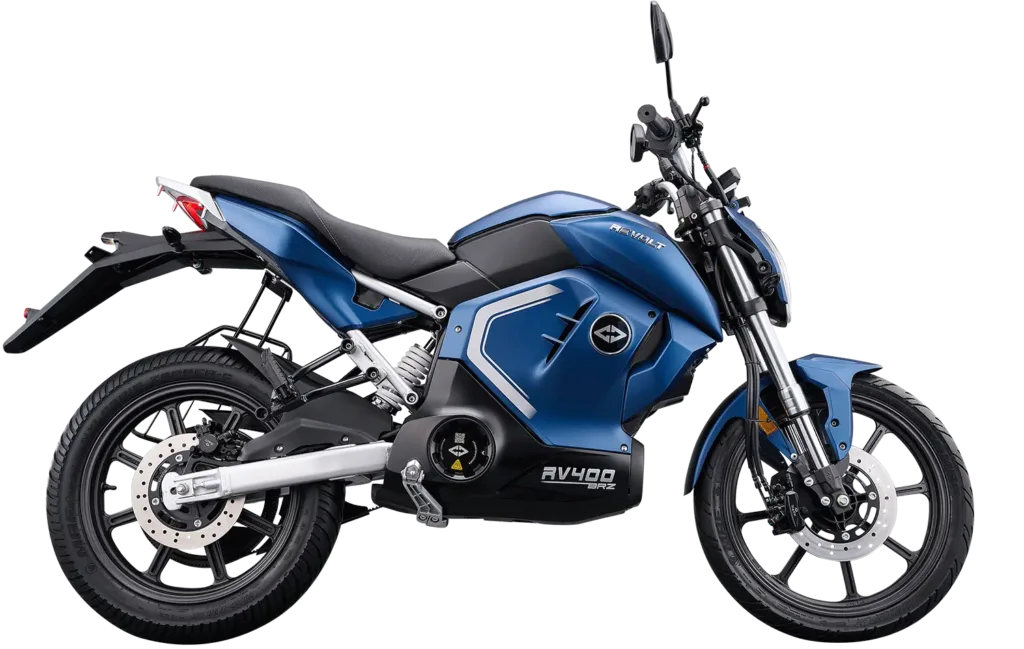

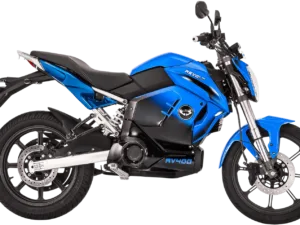

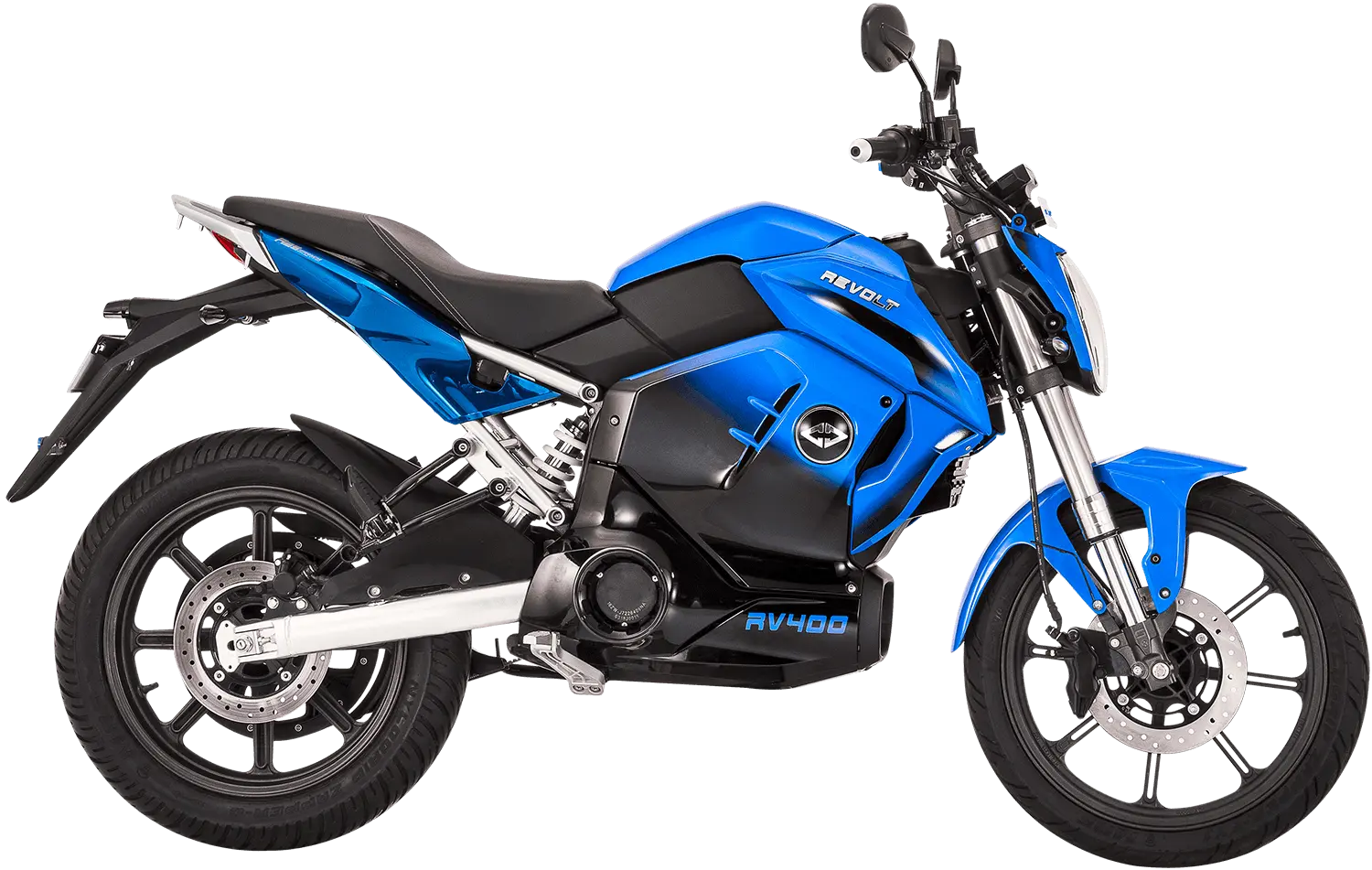

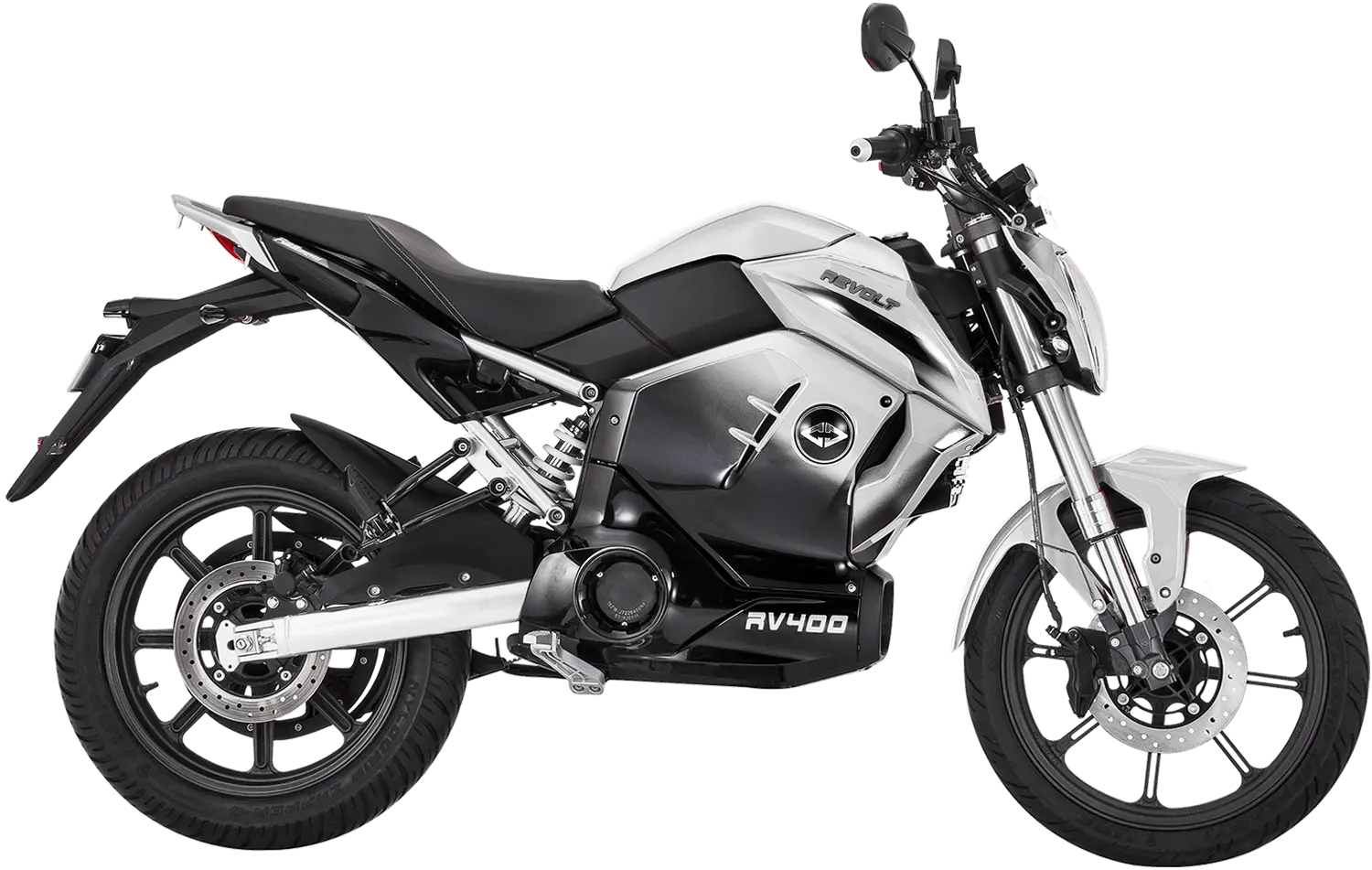

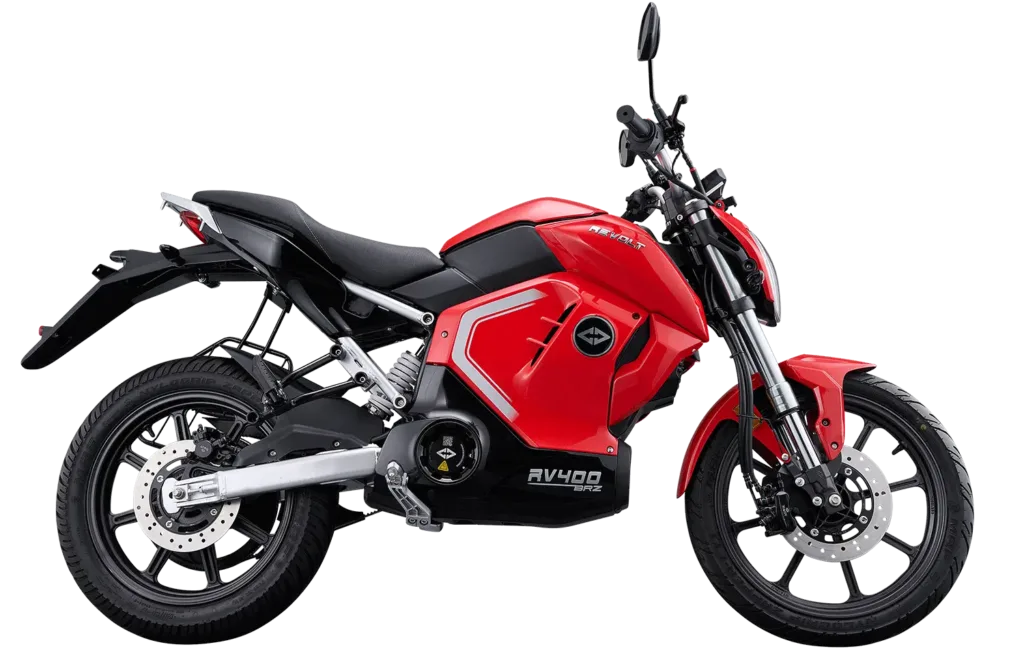

Revolt RV 400 has 2 variants. One is Revolt RV400 standard with four colours- Pacific Blue, Rebel Red, Cosmic Black, Dark Silver. And second variant is Revolt RV400. It has five colours- Cosmic Black, Mist Grey, India Blue, Eclipse Red, Dark Lunar Green.
What is the battery-charger capacity of Revolt RV400 E Bike ?
Revolt Rv400 e bike has 3.24 kwh lithium ion battery 45 ah and 72 v. 15 ampere charger.
Revolt RV400 E Bike Motor & Controller
Revolt RV400 e bike is the revolutionary bike of Revolt Motors. The motor and controller are the main component of an electric vehicle. It is important to talk about them. I think motor is the heart and controller is the brain of the bike. I am explaining the main features here so that you can take decision to buy it:-

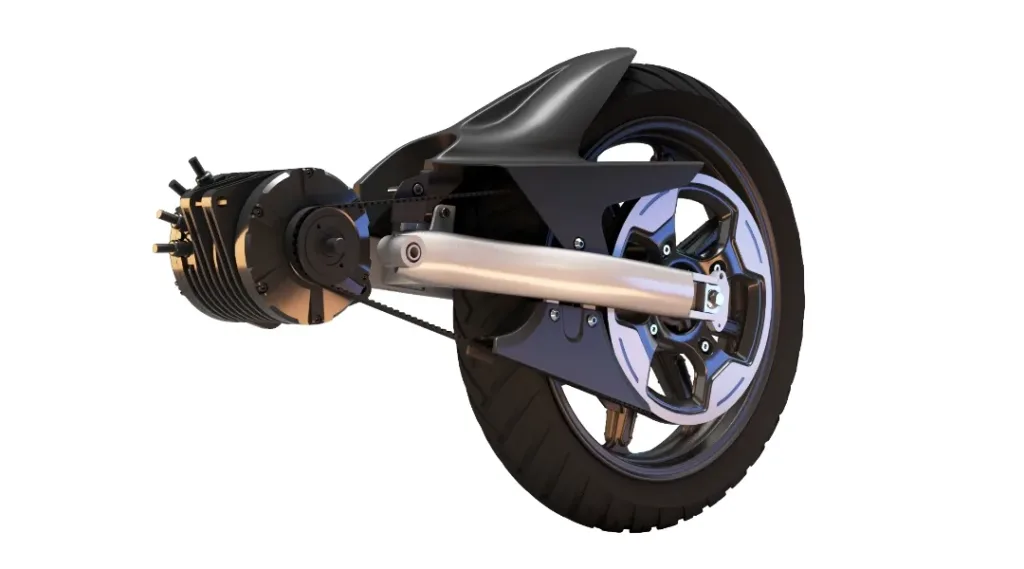

1. Revolt RV400 E Bike Motor
Revolt RV400 e bike uses a mid drive motor of 3 kw which produces a peak power of 4.1 kw and produces a torque up to 180nm (at wheel). and it performs like 110 cc petrol engine.
2. Revolt RV400 E Bike Controller
Revolt RV 400 controller controls both motor and battery. Thermal management, reverse mode,artificial sound etc. are main works.

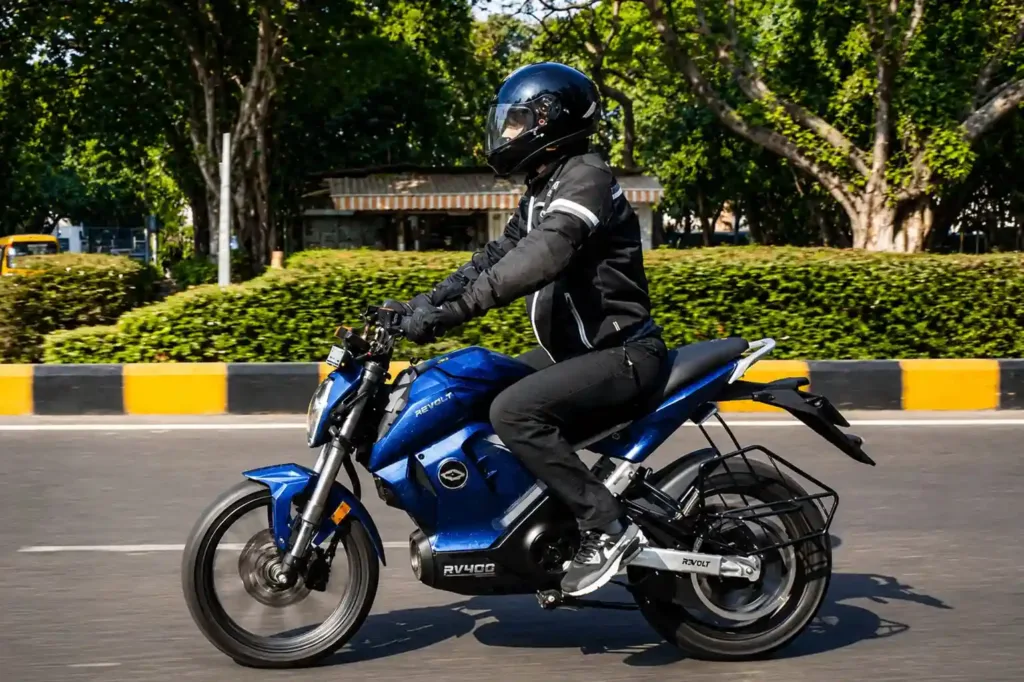

3.Revolt RV 400 Top Speed
Revolt motor provides a maximum speed of 85 km/h in sport mode.

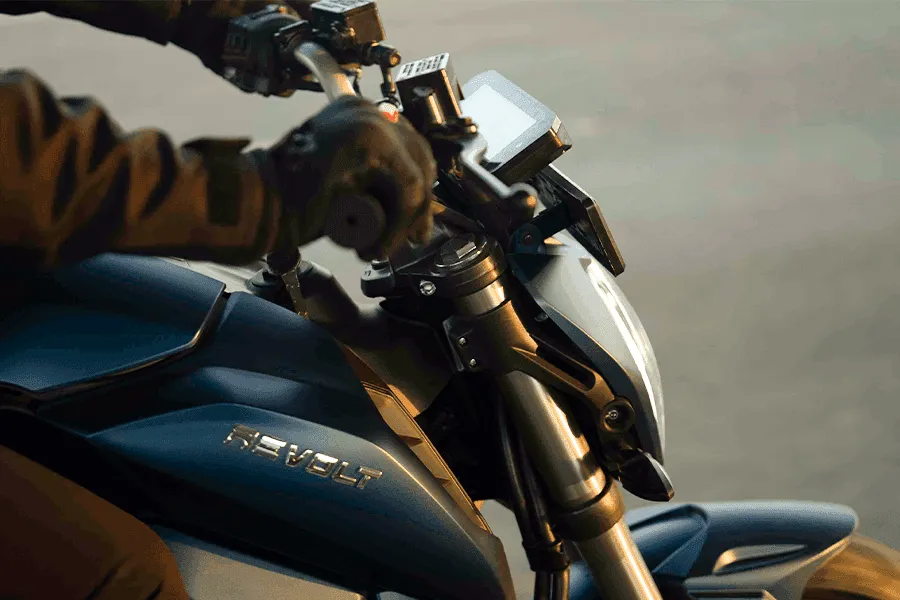

4. Revolt Electric Bike Instant Torque
As Revolt RV 400 is driven by electric motor, maximum torque is provided quickly. It provides quick throttle response with smooth and vibration free acceleration.
5. Transmission
Revolt RV 400 uses low maintenance belt instead of a noisy chain. No tension of cleaning and lubrication.
6. Regenerative Braking
While braking or deceleration, motor starts to feed back into batter for saving the power. It saves power and extends range.

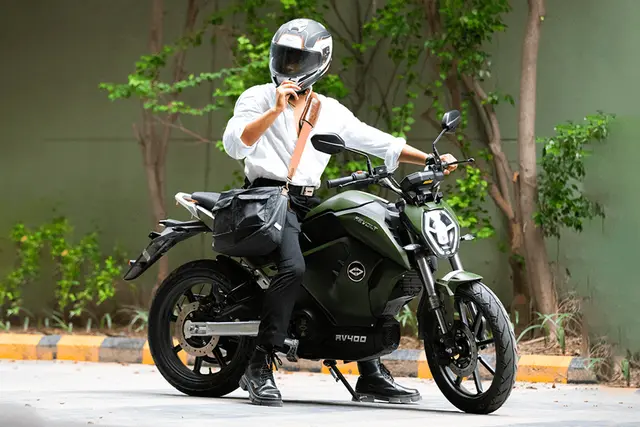

7. Silent
The motor is almost silent during the whole work. The ride is going to be smooth, noise free and with comfort.
8. Zero Emission
Revolt RV400 produces no emission. It is environment friendly bike for daily commuting.
9. Riding Modes
It has 3 riding modes, you can utilize as your need.
- Eco Mode :- This is power saving mode. In this mode, top speed is 45 km/h. and bike can go 150 km in one charging.
- Normal Mode :- This is balanced mode for city commuting. In this mode, top speed is up to 65 km/h and maximum range is 100 km.
- Sport Mode :- Revolt RV400 get it’s top speed up to 85 km/h and the range of 80 km.
10. Thermal Management of Revolt RV 400
- Controller works with BMS (Battery Management System).
- Controller measures the temperature.
- Controller will temporarily minimize the power, when motor-controller heat in load.
- It protects the hardware.
11. Reverse Mode
It has also reverse mode for rider’s comfort.

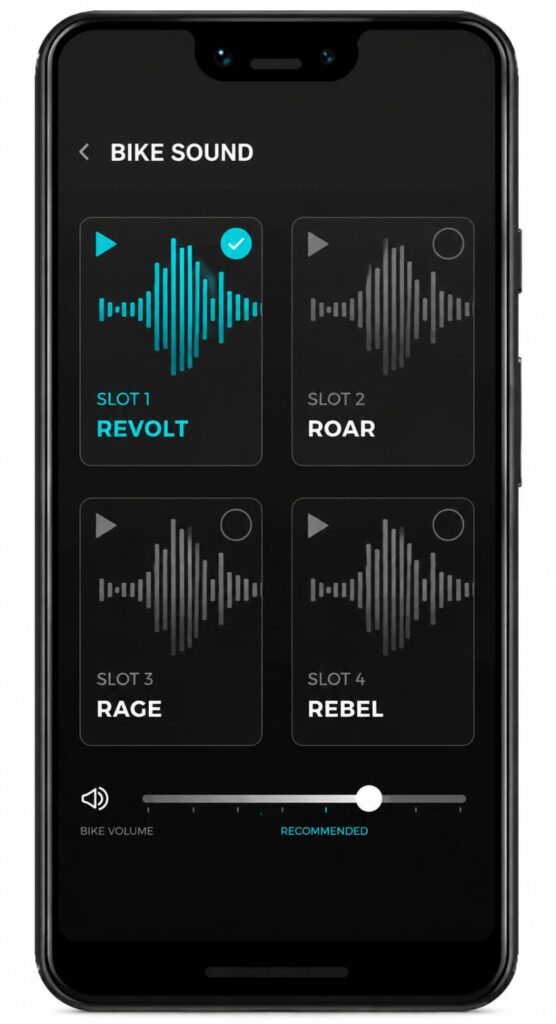

12. Artificial Sound
Revolt has 4 artificial exhaust sound. It produces sound by a speaker near footpeg. these sounds are controled by MyRevolt App. You can select no sound or one of the following- Revolt, Rebel, Roar, Rage.
13. App Integration And Update
It uses MyRevolt App for monitoring, diagnostics, riding statistics and remote. This app updates automatically, no need to fo for an update to manufacture.
14. Cons
I saw only one weak point in Revolt RV 400, That is it’s low top speed- Only 85 km/h. I think, it should be 100 km/h.
15. Conclusion
The motor and controller are equipped with modern technologies. Like- instant torque, regenerative braking, 3 modes, reverse mode, artificial sound and many more. It is money saving commuter bike.
Revolt RV400 Price
On road price in Delhi
- Revolt RV400 BRZ (Disc/Alloy)- Rs. 140138/-
- Revolt RV400 Prem. (Disc/Alloy)- Rs. 147260/-
Revolt Rv 400 Variant Features
- Revolt RV 400 BRZ :- Physical key, No Bluetooth connectivity, No location tracking, No AI sound.
- Revolt Rv 400 Standard/Premium :- Key less star t/remote / Push button, Bluetooth-App connectivity, GPS, AI Sound.
| Dimensions | 691581064 × 6915838064 × 691582064 cm |
|---|
