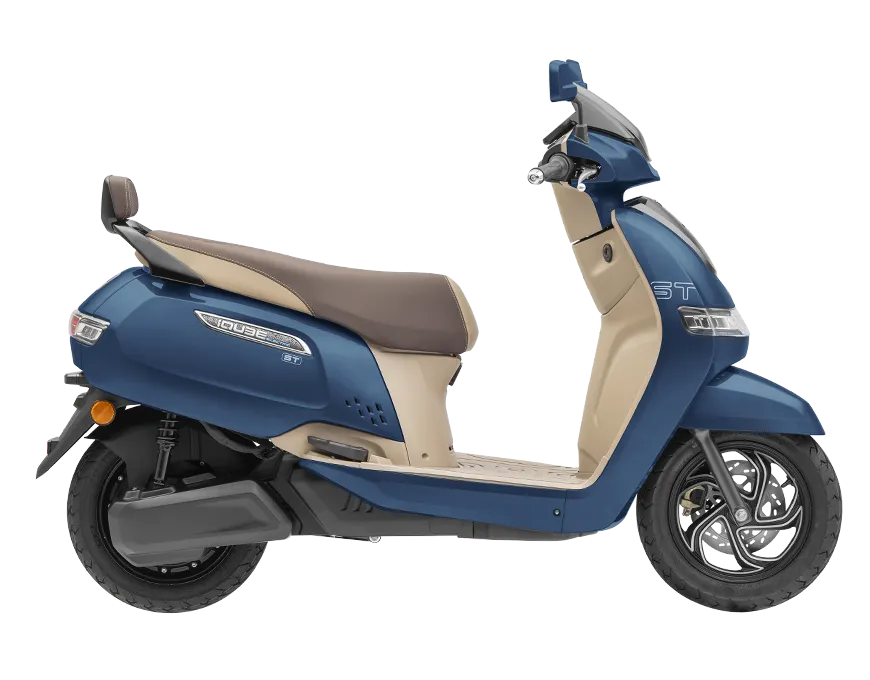

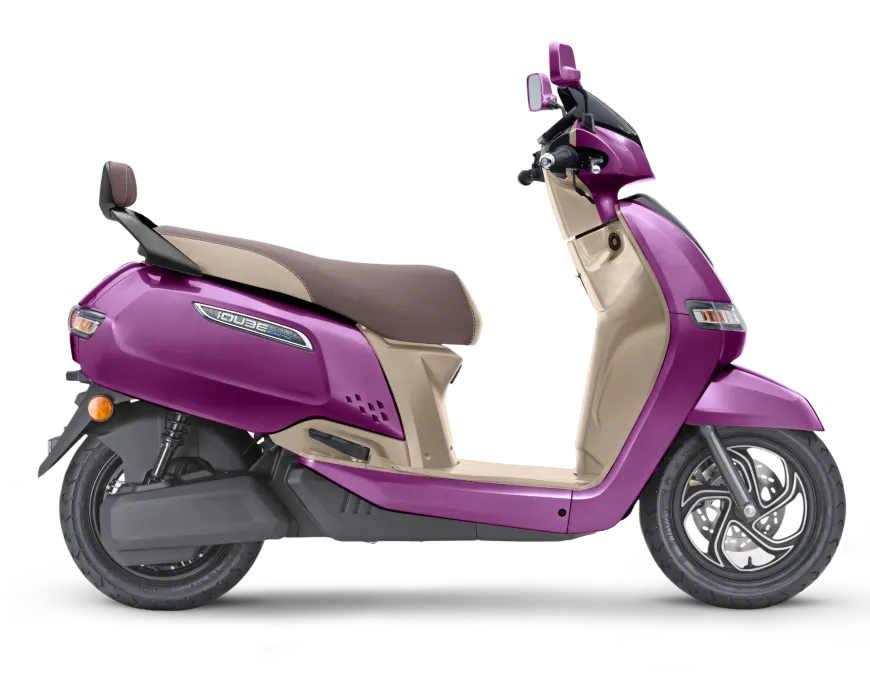

TVS Iqube Electric Scooter
Rs. Rs. 115322
(Ex Showroom Price)
TVS Iqube Electric Scooter Main Features
Motor : 3 KW
Controller :3 KW
Battery Capacity : 2.2 to 5.3 KWH
Vehicle weight : 115 KG
Range : 93-212 KM
Max. Speed : 82 KM/H
Brand : TVS
Under Seat Storage : 32L
TVS Iqube Electric Scooter All Details
Motor :3 KW
Motor Type : BLDC Hub-Mounted
Motor IP Rating : IP67
Controller : 3 KW
Max. Power : 4.4 KWH
Max. Torque : 140 NM
Acceleration : 0-40 KM/H In 4.2 Sec.
Top Speed : 82 KM/H
Range : 93-212 KM
Powered By : Battery
Transmission : Automatic
Starting : Push Button
Emissions : No
Riding Modes : Eco & Power
Water Wading Limit : 15 CM
Transmission: Automatic
Number Of Batteries : 1 Battery, 52 Volt
Battery Type : IP67
Battery Power : 2.2 KWH
Battery IP Rating : IP67
Battery Warranty : 3 Years / 50000 KM
Battery Volts : 52 V
Battery Ampere : 24 to 30+ AH
Charger Type : Portable
Charger Volt : 58.8V
Charger Ampere : 10A-11A
ChargingPower : 650 W to 950 W
Charging Time : 0-80% In 2.45 Hr
Charging At Charging Station : Yes
Charging At Home : Yes
Front Light : LED Headlight
Back Light : LED Tail Light
Wiring : 12 Volt, DC
Length : 180.5 CM
Height : 114 CM
Width : 64.5 CM
Seat Heigth : 77 CM
Ground Clearance : 15.7 CM
Weight : 115 KG
Front Wheel : 12 Inches, Alloy
Rear Wheel : 12 Inches, Alloy
Front Tyre : 90/90 -12 ,Tubeless
Rear Tyre : 90/90 -12 ,Tubeless
Front Tyre Pressure : 25 Psi
Rear Tyre Pressure : 34 Psi
Braking : Disc & Drum
Front Brake : 220 mm Disc
Rear Brake : 130 mm Drum
Clothes Guard : Yes
Front Suspension : Telescopic forks
Rear Suspension : Hydraulic Twin Tube
Chassis Type : Tubular
Body Type : Commuter
Seat : Single
Instrument Console : Digital
Display : 5" TFT Display
Connectivity : Bluetooth, Mobile Application
Digital : Speedometer, Odometer, Tripmeter
Location Tracking : Yes
Call SMS Alert : Yes
USB Charging Port : Yes
Average Battery Consumption : Yes
Mileage Indicator : YES
Distance To Empty : YES
Low Battery Indicator : Yes
Stand Alarm : YES
Service Reminder : YES
Hazard Warning Indicator : YES
Clock : YES
Remote Lock-Unlock : YES
Standard Warranty In Years : 3 Years
Standard warranty In KM : 50000 KM
1ST Service : 6 Months or 4000
2ND Service : 365 Days / 4000 KM
TVS Iqube Electric Scooter Detailed Information
TVS iQube Electric Scooter Motor & Controller
TVS iQube electric scooter is a modern and high demanding scooter in Indian market. Here are main points-1. Motor
TVS iQube electric scooter uses a BLDC hub motor of 3 kw, which produces 4.4 peak power and 140 nm torque at wheel.2. controller
Smart controller of TVS iQube has 3 kw capacity. it controls motor, battery and other components.
3. Instant Torque
As an electric vehicle, it provides maximum torque instantly. It provides good pick up.4. Silent & Smooth Operations
TVS iQube electric scooter motor is almost silent. and motor provides smooth acceleration without vibrations. It maximize rider’s comfort and reduces noise pollution.
5. Maintenance Free Ride
The motor is designed to provide balanced performance with efficiency for daily commuting. And there is no clutch, gear, chain, engine oil maintenance tension at all. So it is almost maintenance free vehicle.6. Regenerative Braking
Motor recharge the battery back during breaking or deceleration to extend the range of the vehicle. This is the advanced feature for power saving.
7. Riding Modes
TVS iQube scooty has two riding modes- Eco Mode :- This is a balanced and power saving mode for daily city commuting. It saves the power and limit the top speed up to 45 km/h. This mode is best for local use, specially in heavy traffic. In this mode, scooter can go from 90 km to 170 km in one charging (Depending on variant and riding conditions).
- Power Mode :- This mode is for high acceleration, overtaking and speed. It consumes more power than eco mode. It provides maximum speed from 75 km to 82 km (Depend on variant). In this mode, the riding range goes up to 100 km (Depending on variant and riding conditions). This is best for highway riding.
8. Reverse Mode
TVs iQube scooty is equipped with reverse and forward mode. You can easily utilize reverse modes in parking in daily life. This is very convenient feature for rider’s comfort.9. Thermal Management
Controller works with BMS and protects battery. It monitors system health like – short circuit, over voltage, under voltage and measures heat. And if required, controller reduces or cut the power on heavy operations for protection.
10. Smart Connectivity
TVS iQube Electric scooter comes with SmartXonnect App. You can connect your smartphone by Bluetooth and track riding data.11. Cons
- Limited Power.
- Power reduces on heavy load.
- Less top speed.
- Changing rear tire, requires disconnection of the motor.
12. Conclusion
Motor & controller of TVS iQube electric scooter are equipped with modern features like – Riding modes, Reverse mode, Smart connectivity etc. It is made for balanced performance, long lasting life and reliability and daily riding at low cost. TVS iqube scooty is not designed for higher RPM or tracked riding. This is a budget friendly scooter for daily use. You can trust it.TVS Iqube On Road Price In Delhi
- TVS Iqube 2.2 kwh-Â Rs. 117520
- TVS Iqube 3.1 kwh-Â Rs. 128540
- TVS Iqube 3.5 kwh-Â Rs. 139893
- TVS Iqube S 3.5 kwh-Â Rs. 145792
- TVS Iqube ST 3.5 kwh-Â Rs. 159570
- TVS Iqube S 4.7 kwh-Â Rs. 167910
- TVS Iqube 5.3 kwh-Â Rs. 183335
TVS Iqube Electric Scooter Variants And Features
- TVS iQuve 2.2 kwh :- Top speed 75 km/h, Range 94 km, Battery 2.2 km/l, 80% charging in 2h 45m, TFT Display 5.08″.
- TVS iQube 3.1 kwh :- Top speed 82 km/h, Range 123 km, Battery 3.1 kwh, 80% charging in 4h 3m, 5.08″ TFT Display.
- TVS iQube 3.5 kwh :- Top speed 78 km/h, Range 145 km, Battery 3.5 kwh, 80% charging in 4h 30m, 5.08″ TFT Display.
- TVS iQube S 4.7 kwh :- Top speed 82 km/h, Range 175 km, Battery 4.7 kwh, 80% charging in 4h, 7.11″ TFT Display.
- TVS iQube ST 5.3 kwh :- Top speed 82 km/h, Range 212 km, Battery 5.3 kwh, 80% charging in 4h 18m, 7.11″ TFT Touch Display.
TVS iQube Electric Scooter Chassis
- Tvs iQube electric scooter is made of tubular steel frame chassis.
- Durable and optimized for battery and motor efficiency.
- Most of the heavy parts like battery and motor-controller are placed in the center for better balance.
- Better central weight distribution improves overall efficiency.
- single comfortable seat for rider and pillion.
- Provides a comfortable riding posture and better riding quality.
- lightweight and balanced chassis provides easy handling in city traffic.
- Well performance and stability at high speed increases rider’s confidence.
- Works efficiently with front and rear suspensions with comfort.
- Stylish alloy wheels provides modern look.
- 220mm front disc brakes is also providing a powerful braking in emergency conditions.
Body Graphics Space Of TVS iQube Scooty
- Smart LED headlight with U shape DRS.
- Indicator placement in side edges.
- Body colour matched square shape mirrors provides premium look.
- Silver colour handle bar edge, clutch and brake enhance the look.
- 32 liter massive under seat storage.
- Wide front fender (In higher variants) provides an aggressive and sporty look.
- Enough boot space for carrying luggage.
- Hanging hook for carrying polythene or bags for daily use.
- Premium backrest for pillion’s comfort (in higher variants).
- Premium paint finished.
- Multiple colour options.
- Premium dual tone colours availability in higher variants.
- Stylish LED tail light with classy indicators.

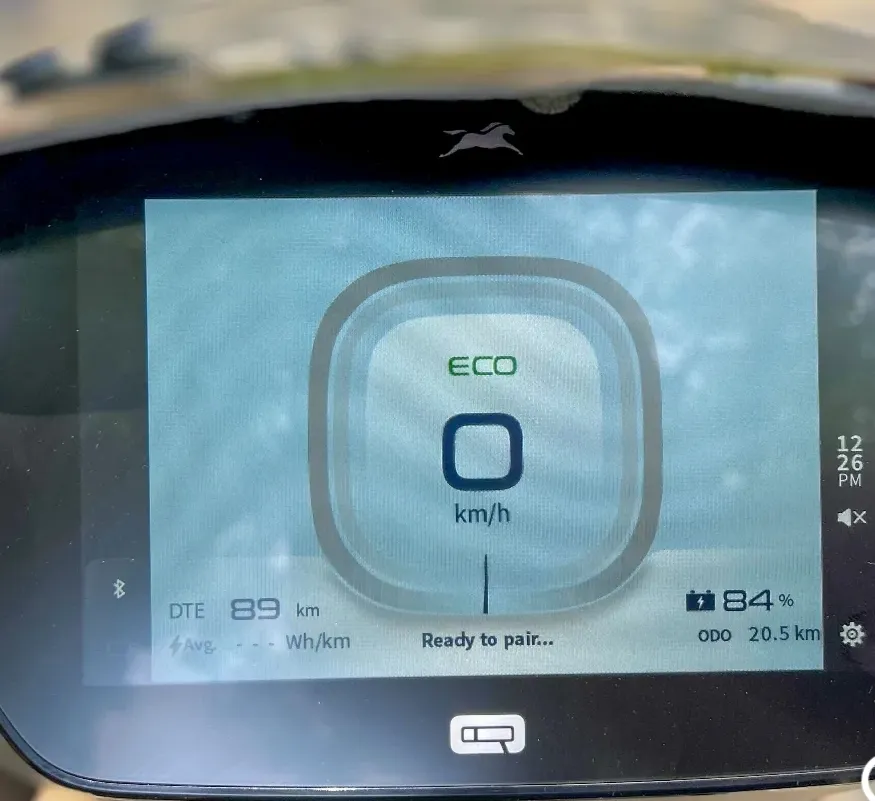

TVS iQube Scooty Instrument Cluster
- Fully digital instrument console.
- Easy to read 5.08′ to 7.11″ TFT display (According variants).
- Touch screen display (Available in ST 5.3 variant).
- Digital speedometer.
- Digital odometer.
- Digital trip meter.
- Battery charging indicator.
- Riding mode indicator.
- Turn signal indicator.
Oplus_0
- High beam indicator.
- Hazard warning indicator.
- Real time data.
- Turn signal indicator.
- Side stand alert.
- Low battery alert.
- Warning and error alerts.
- Call SMS alerts.
- Turn by turn navigation.
Oplus_0
- Vehicle tracking (in higher variants).
- Riding analytics.
- Geo fencing.
- Last parking location.
- Smart watch integration.
- Remote starts by smartphone app (in higher variant).
- Regenerative information (in higher variant).
- USB charging port.
- Images from TVSMOTORS
- Â Bajaj Chetak
Related products
Q & A For TVS Iqube Electric Scooter
What is the mileage of TVS Iqube Electric Scooter?
mileage of TVS iQube scooty in eco mode goes from 94 km to 212 km, according to the variants.
What is the price of TVS Iqube Electric Scooter?
TVS iQube on road price in Delhi starts from Rs. 117520 to Rs. 183335.
What is the top speed of TVS Iqube Electric Scooter ?
Top speed of TVS iQube electric scooter in power mode goes from 75 km/h to 82 km/h, depending on variants.
What is the weight of TVS Iqube Electric Scooter ?
TVS iQube scooty has 115 kg weight.
What is the motor-controller efficiency of TVS Iqube Electric Scooter ?
Tvs iQube has 3 kw motor & controller.
What are the digital features of TVS Iqube Electric Scooter ?
TVS iQube electric scooter has multiple digital features like:- Call-SMS alert, Bluetooth, Touch Display, Mobile application etc.
what are the colours and variant of TVS Iqube Electric Scooter ?
It has total 7 variants and various colours.
What is the battery-charger capacity of TVS Iqube Electric Scooter ?
TVS iQube electric scooter has battery power from 2.2 kwh to 5.3 kwh and charger power from 650 w to 950 w (Depends on variant).
TVS iQube Electric Scooter Motor & Controller
TVS iQube electric scooter is a modern and high demanding scooter in Indian market. Here are main points-
1. Motor
TVS iQube electric scooter uses a BLDC hub motor of 3 kw, which produces 4.4 peak power and 140 nm torque at wheel.
2. controller
Smart controller of TVS iQube has 3 kw capacity. it controls motor, battery and other components.
3. Instant Torque
As an electric vehicle, it provides maximum torque instantly. It provides good pick up.
4. Silent & Smooth Operations
TVS iQube electric scooter motor is almost silent. and motor provides smooth acceleration without vibrations. It maximize rider’s comfort and reduces noise pollution.
5. Maintenance Free Ride
The motor is designed to provide balanced performance with efficiency for daily commuting. And there is no clutch, gear, chain, engine oil maintenance tension at all. So it is almost maintenance free vehicle.
6. Regenerative Braking
Motor recharge the battery back during breaking or deceleration to extend the range of the vehicle. This is the advanced feature for power saving.
7. Riding Modes
TVS iQube scooty has two riding modes
- Eco Mode :- This is a balanced and power saving mode for daily city commuting. It saves the power and limit the top speed up to 45 km/h. This mode is best for local use, specially in heavy traffic. In this mode, scooter can go from 90 km to 170 km in one charging (Depending on variant and riding conditions).
- Power Mode :- This mode is for high acceleration, overtaking and speed. It consumes more power than eco mode. It provides maximum speed from 75 km to 82 km (Depend on variant). In this mode, the riding range goes up to 100 km (Depending on variant and riding conditions). This is best for highway riding.
8. Reverse Mode
TVs iQube scooty is equipped with reverse and forward mode. You can easily utilize reverse modes in parking in daily life. This is very convenient feature for rider’s comfort.
9. Thermal Management
Controller works with BMS and protects battery. It monitors system health like – short circuit, over voltage, under voltage and measures heat. And if required, controller reduces or cut the power on heavy operations for protection.
10. Smart Connectivity
TVS iQube Electric scooter comes with SmartXonnect App. You can connect your smartphone by Bluetooth and track riding data.
11. Cons
- Limited Power.
- Power reduces on heavy load.
- Less top speed.
- Changing rear tire, requires disconnection of the motor.
12. Conclusion
Motor & controller of TVS iQube electric scooter are equipped with modern features like – Riding modes, Reverse mode, Smart connectivity etc. It is made for balanced performance, long lasting life and reliability and daily riding at low cost. TVS iqube scooty is not designed for higher RPM or tracked riding. This is a budget friendly scooter for daily use. You can trust it.
TVS Iqube On Road Price In Delhi
- TVS Iqube 2.2 kwh-Â Rs. 117520
- TVS Iqube 3.1 kwh-Â Rs. 128540
- TVS Iqube 3.5 kwh-Â Rs. 139893
- TVS Iqube S 3.5 kwh-Â Rs. 145792
- TVS Iqube ST 3.5 kwh-Â Rs. 159570
- TVS Iqube S 4.7 kwh-Â Rs. 167910
- TVS Iqube 5.3 kwh-Â Rs. 183335
